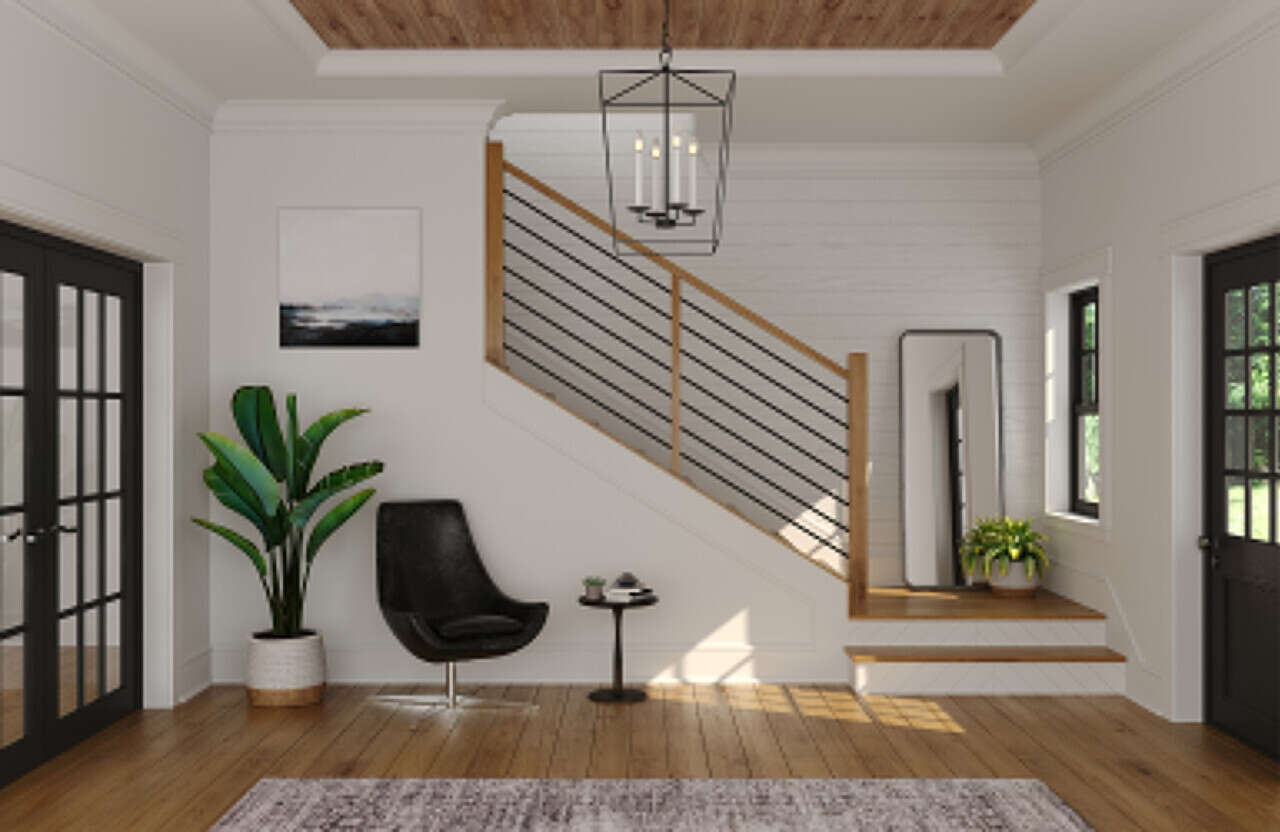

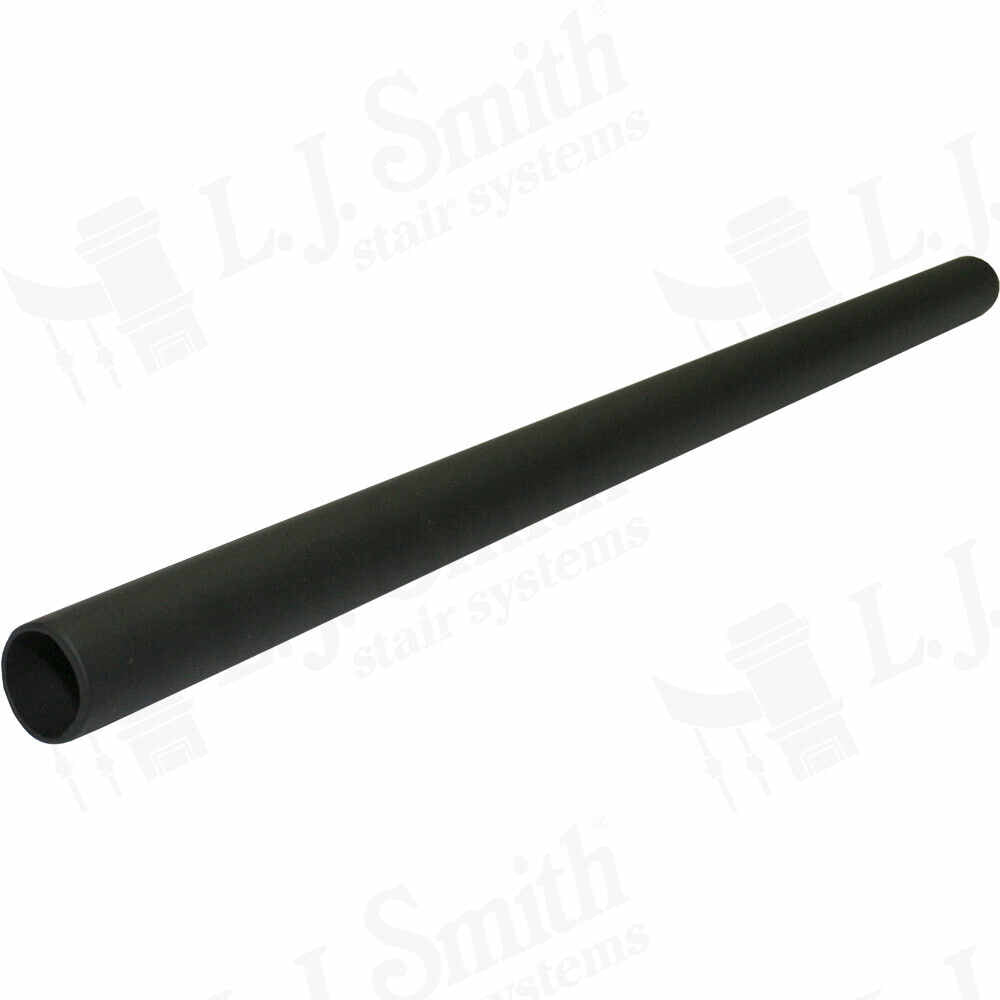

5/8-in hollow steel tube, Low Sheen Black
Use suggested adhesives LI-3701, 6100E-10AD, or EGEXTREME-10AD
Tube infill is intended to be used as a guard/fence and is not intended for overhead or any condition involving motion

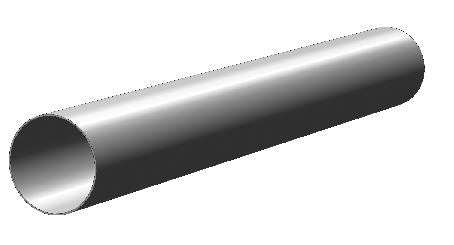

20' section of 3/4" Hollow 304 Grade Stainless Steel Tube. Calculate enough tube to run between every tube system newel selected. TR/TL-410/420-36 require 7 tubes. TR/TL-410/420-39 require 8 tubes. TR/TL-410/420-42 requires 9 tubes. 20' Length of 3/4" Hollow 304 Grade Stainless Steel Tube CABLE SYEYEMS: If using 3/4" Tube as a stabilizing member between newels in a cable system, select enough tube to run between each newel. TUBE SYSTEMS: Select enough 3/4" Tube to run between every tube system newel selected. TR/TL-410/420-36 requires 7 tubes; TR/TL-410/420-39 requires 8 tubes; TR/TL-410/420-42 requires 9 tubes. Stainless Steel hollow tube is available 5' (TUBE-005-SS)...
Includes 4FL OZ Boeshield T-9 and 8.45FL OZ Boeshield Rust Free
Use Boeshield T-9 after cleaning with RustFree to protect stainless steel cable
Directions: For light rust on steel or cast iron, spray RustFree on a rag and wipe surface; Do not spray directly on surface, as it may cause spotting; For heavy rust, spray directly on rusted surface and scrub with Scotch-Brite pad; Wipe off and repeat if necessary; RustFree works best above 70¡ F
Select a C-PROTECTOR (Post Protector Tube) for each instance where the cable enters or exits a Level Pass Thought Newel at an angle. Post Protector Tubes keep the cable from "biting" into the wood.
See linear collection installation instructions at http://assets.ljsmith.com/assets/files/pdf/Linear%20Collection%20Cable%20Instructions.pdf
Our box treads are face laminated solid construction and perfect for creating a modern and open designed stairway. Box treads are offered in hard maple and red oak as standard, however other species may be quoted.
KEY FEATURES:
Face laminated solid construction
Stain grade
Use with Linear Collection panel, tube and cable systems
3-1/2" tall and 11-1/2" deep. Widths of 42", 48" or custom quoted sizes

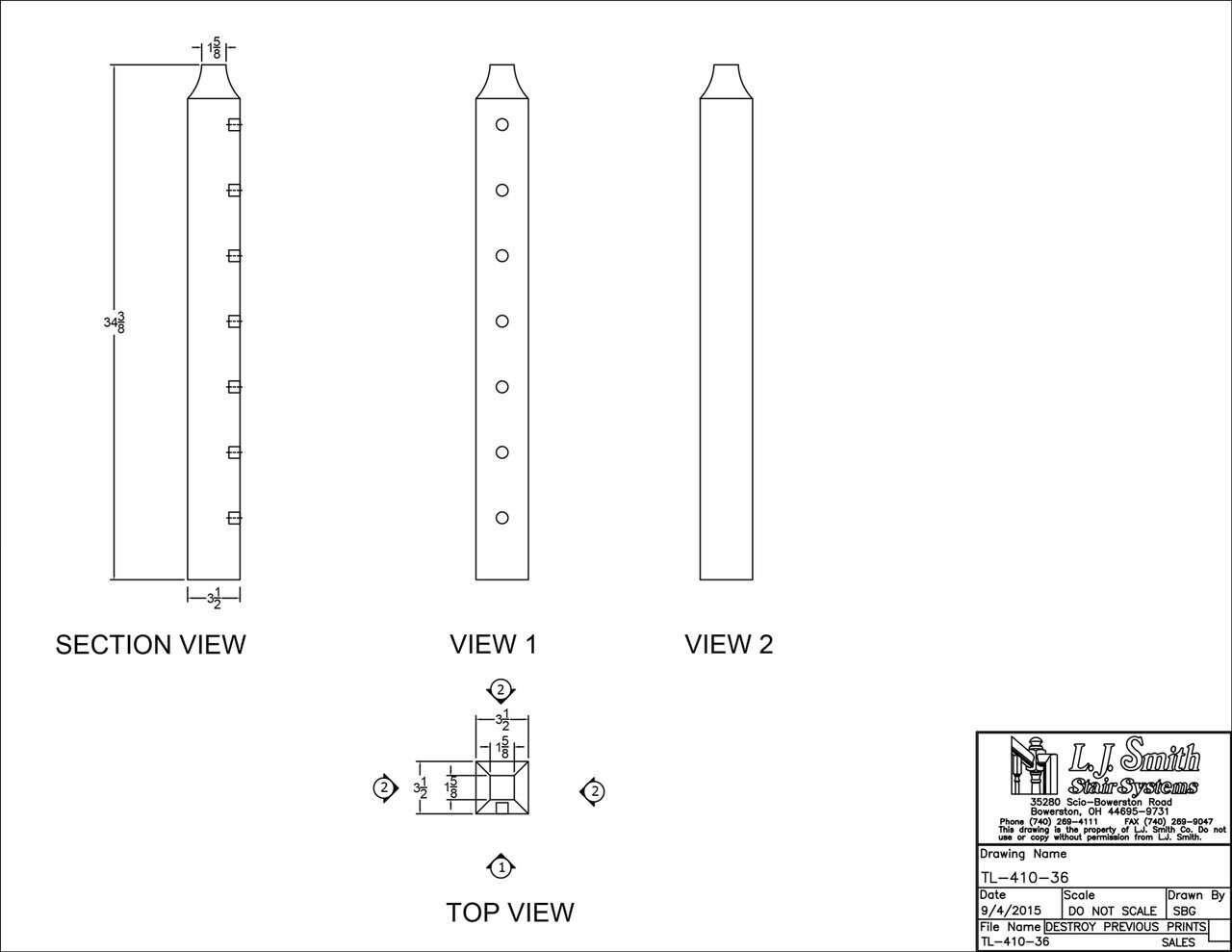

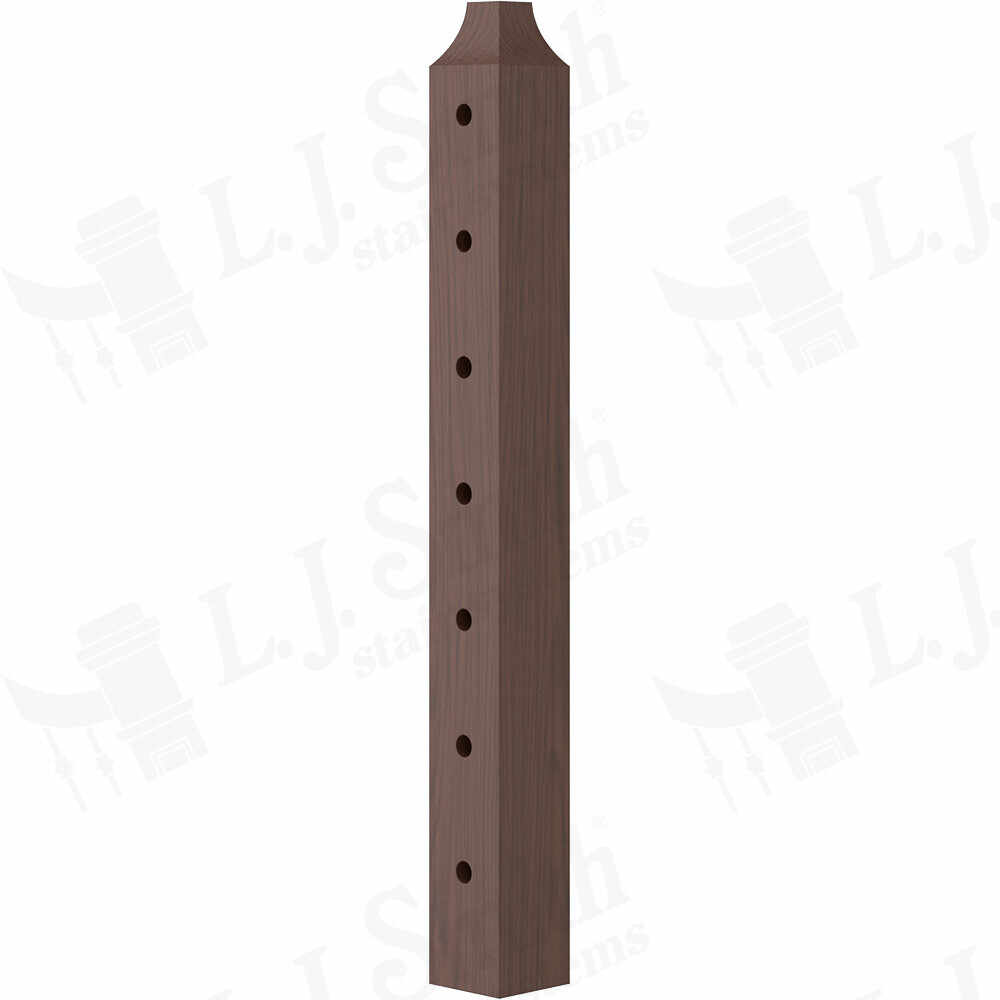

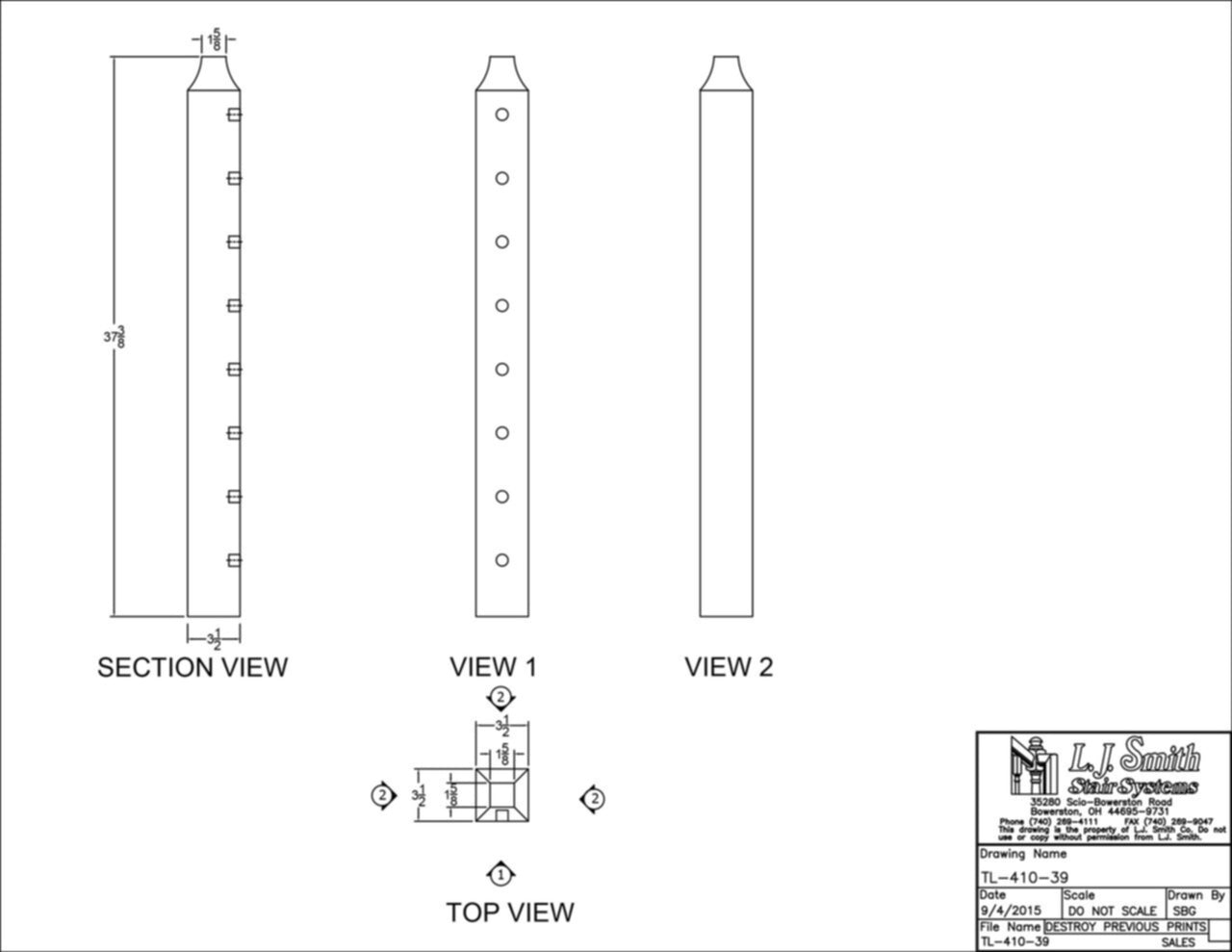

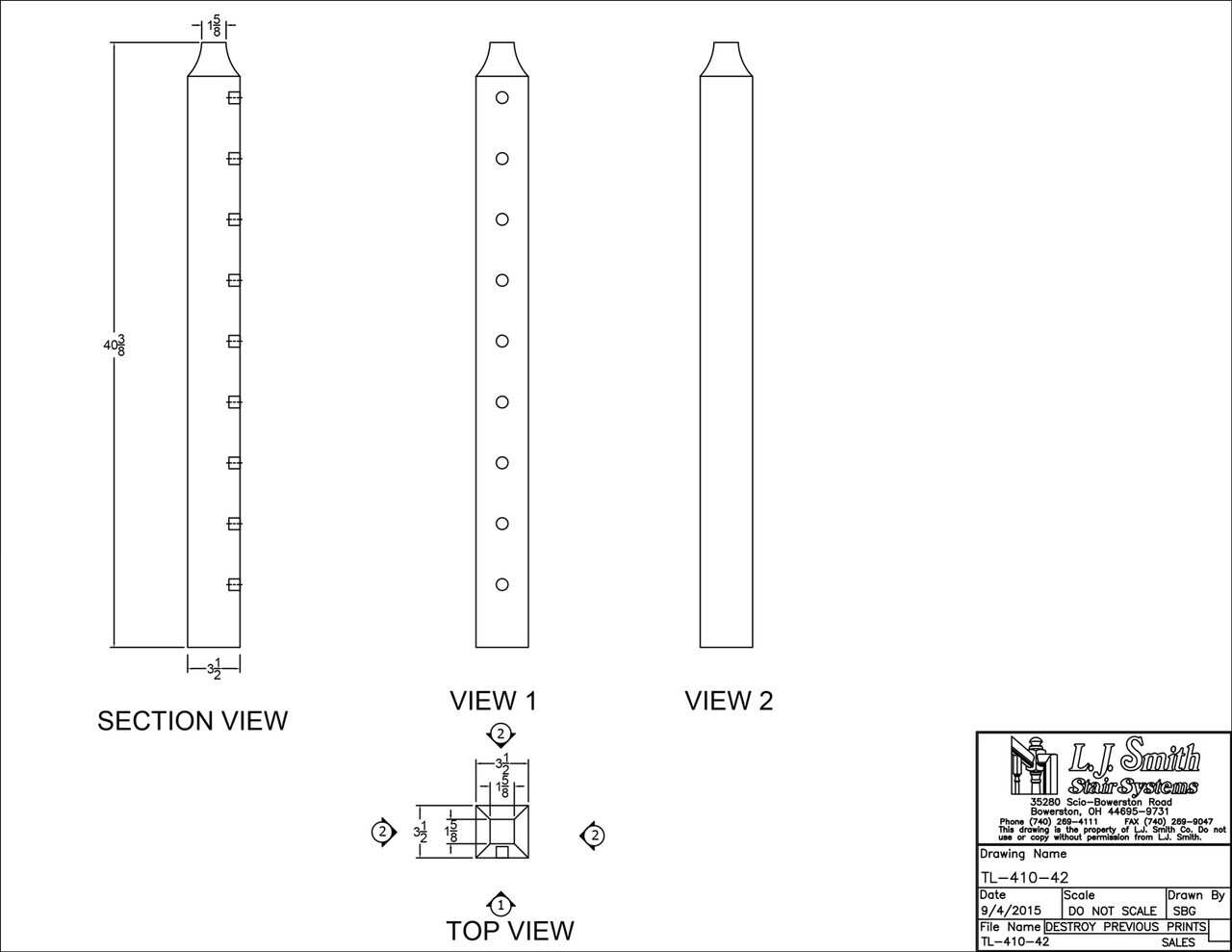

Level Start/Stop Newel (3-1/3" square by 34-3/8", 37-3/8" or 40-3/8") for beginning or end of each level run on Tube System. Tube should be installed into a newel post at the end of the level run that is placed next to the wall. Available in red oak or hard maple. Each newel post comes with a 3/4" x 2" wood dowel for attaching the 684 wood handrail. Available for 36", 39" and 42" rail height systems. Please note the newel lengths on the are 34-3/8" on a 36" system, 37-3/8" on a 39" system and 40-3/8" on a 42" system. ...

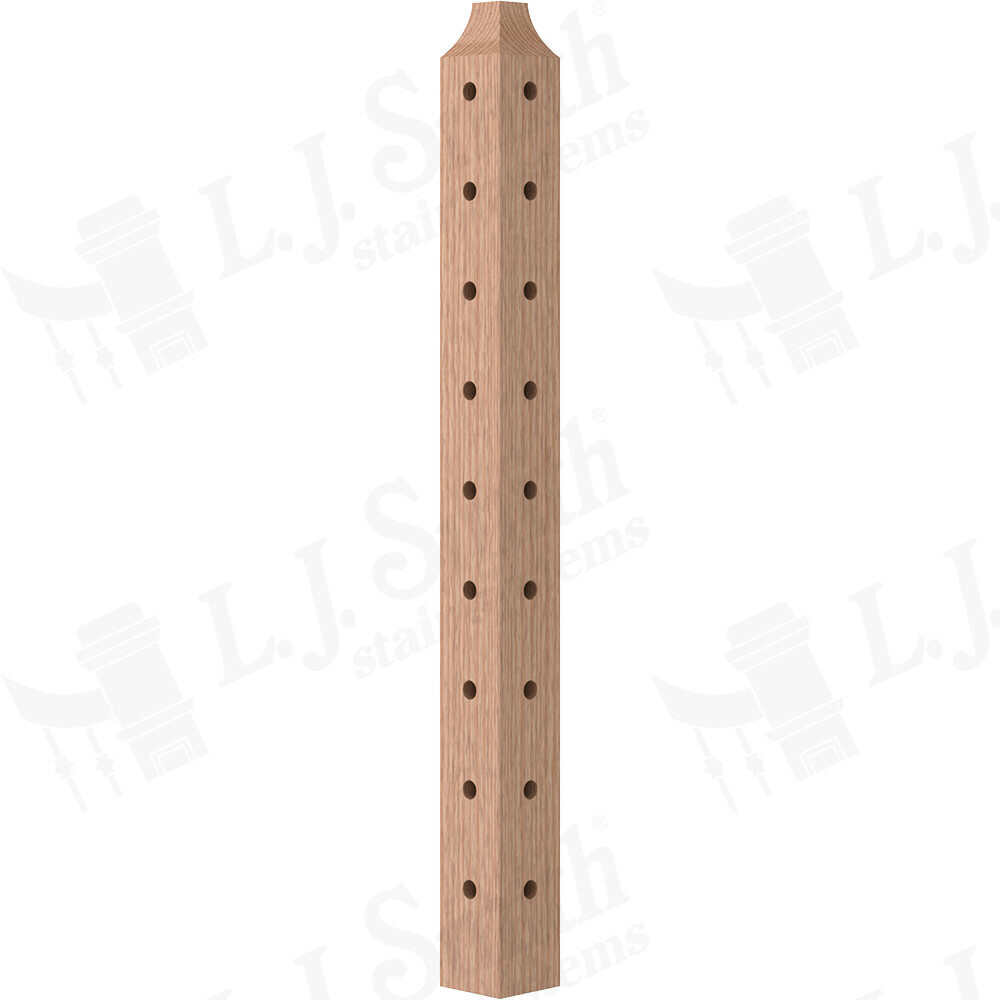

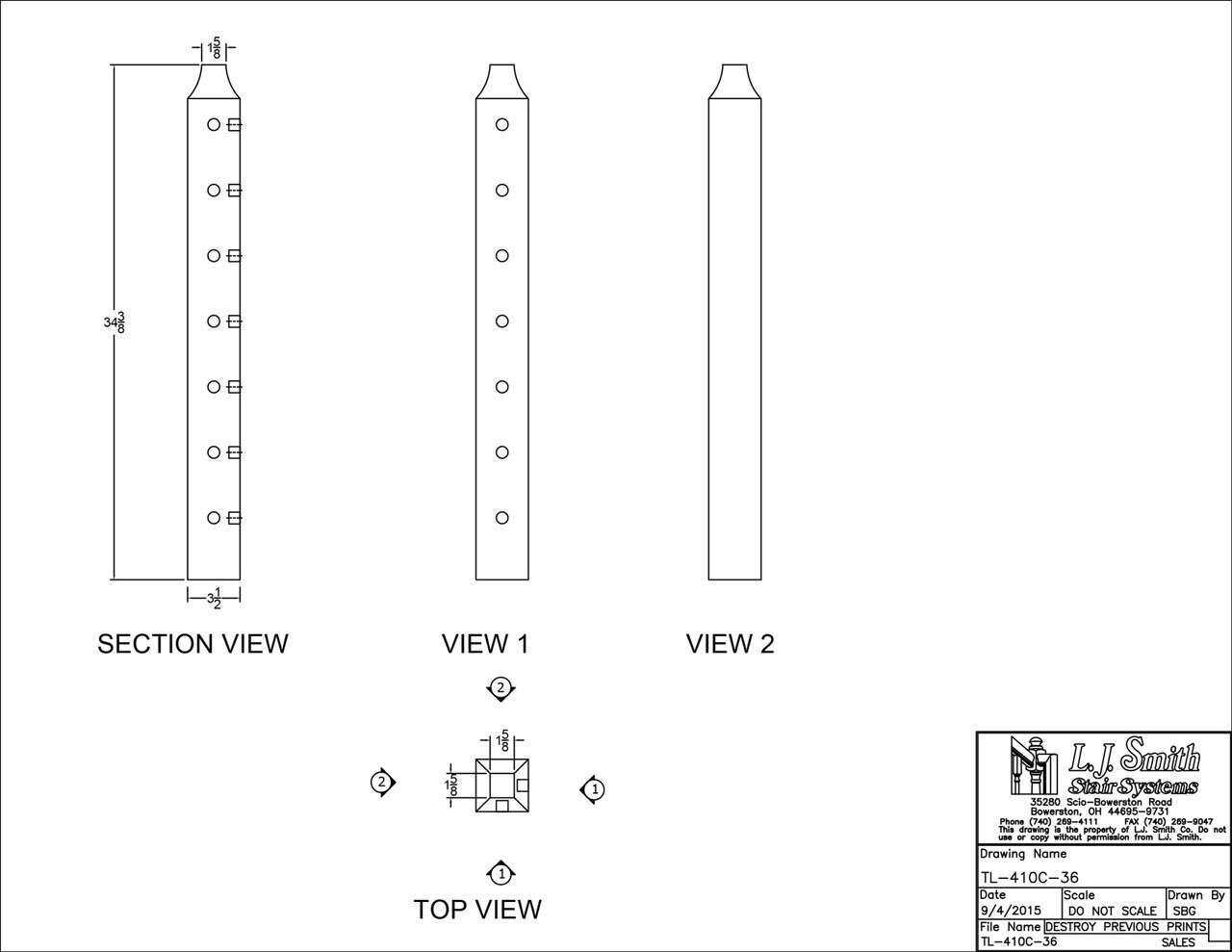

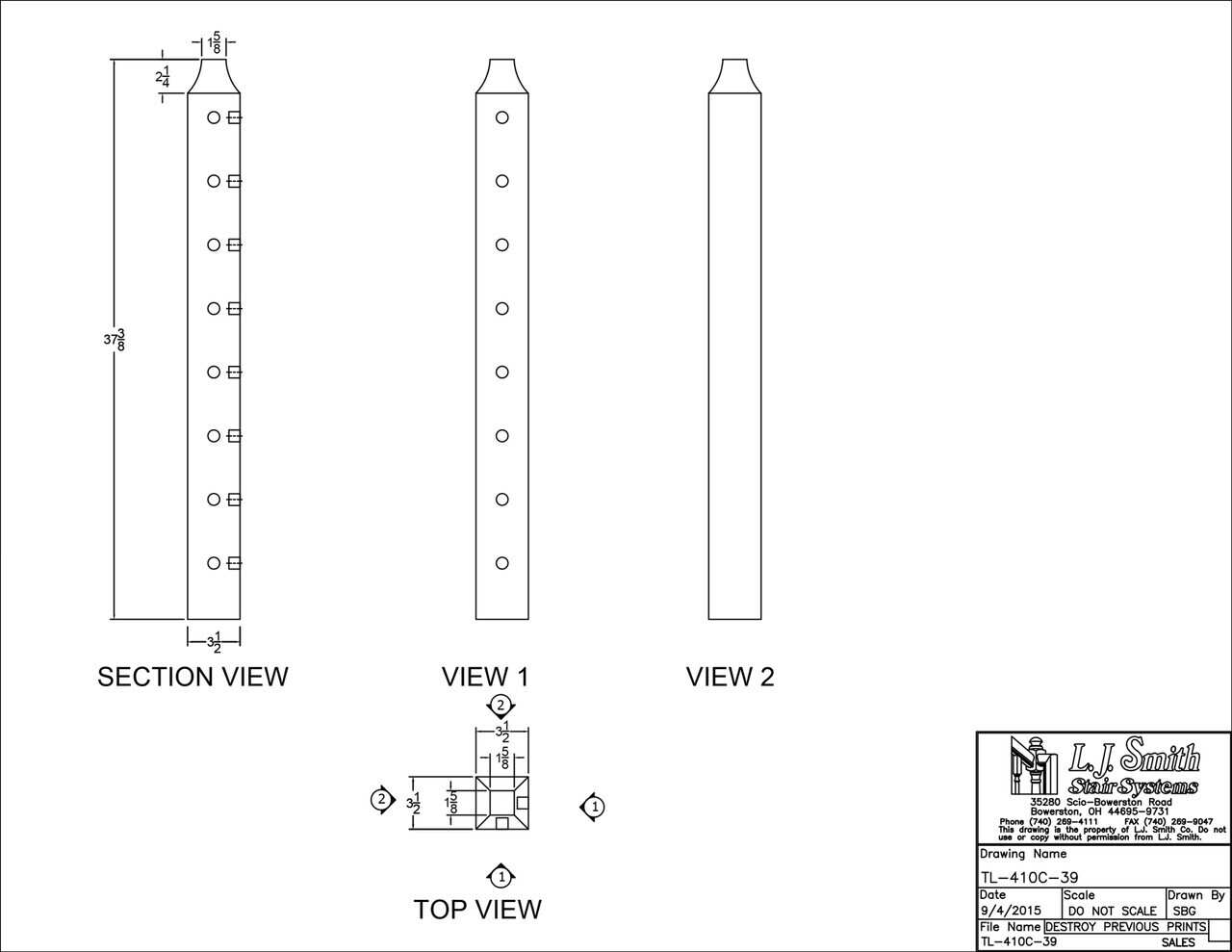

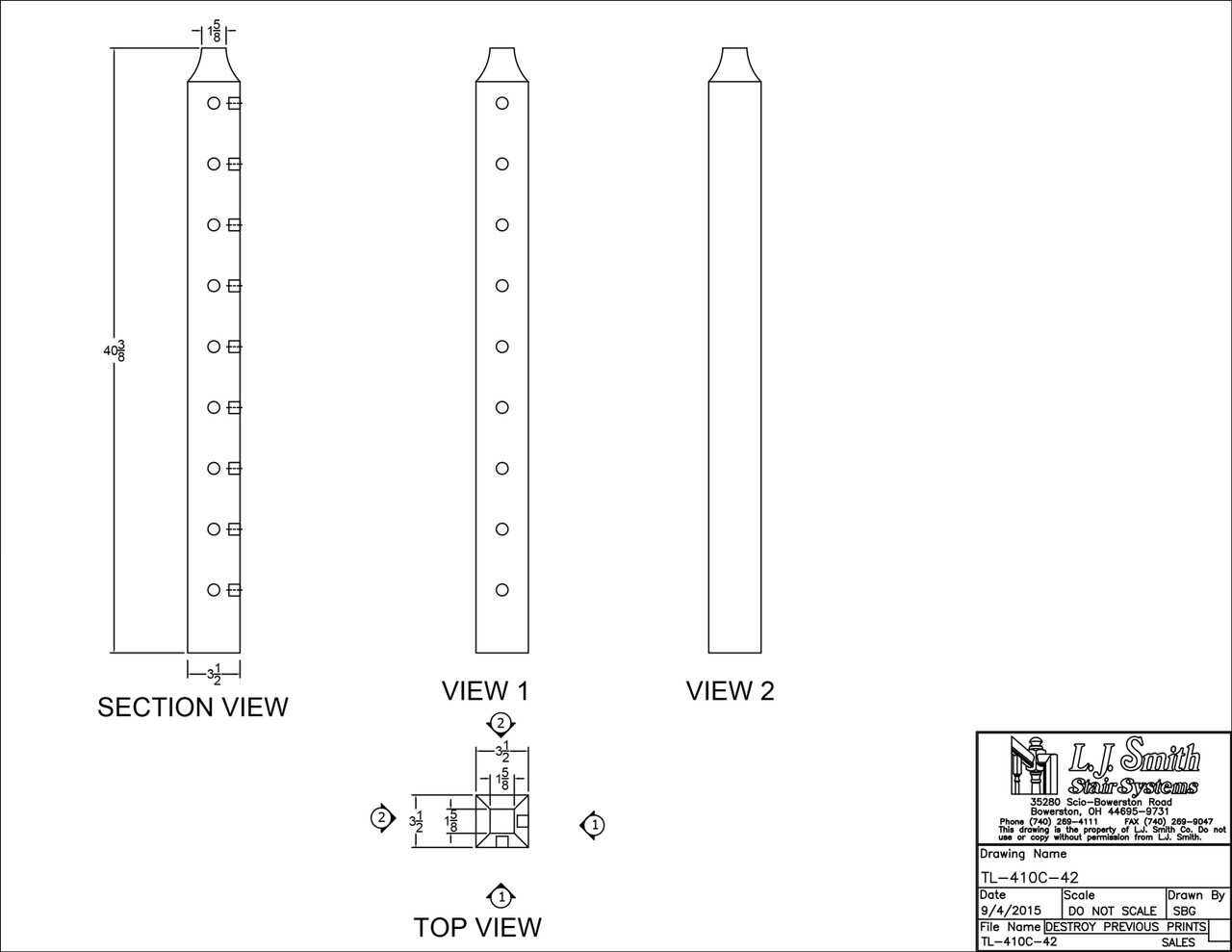

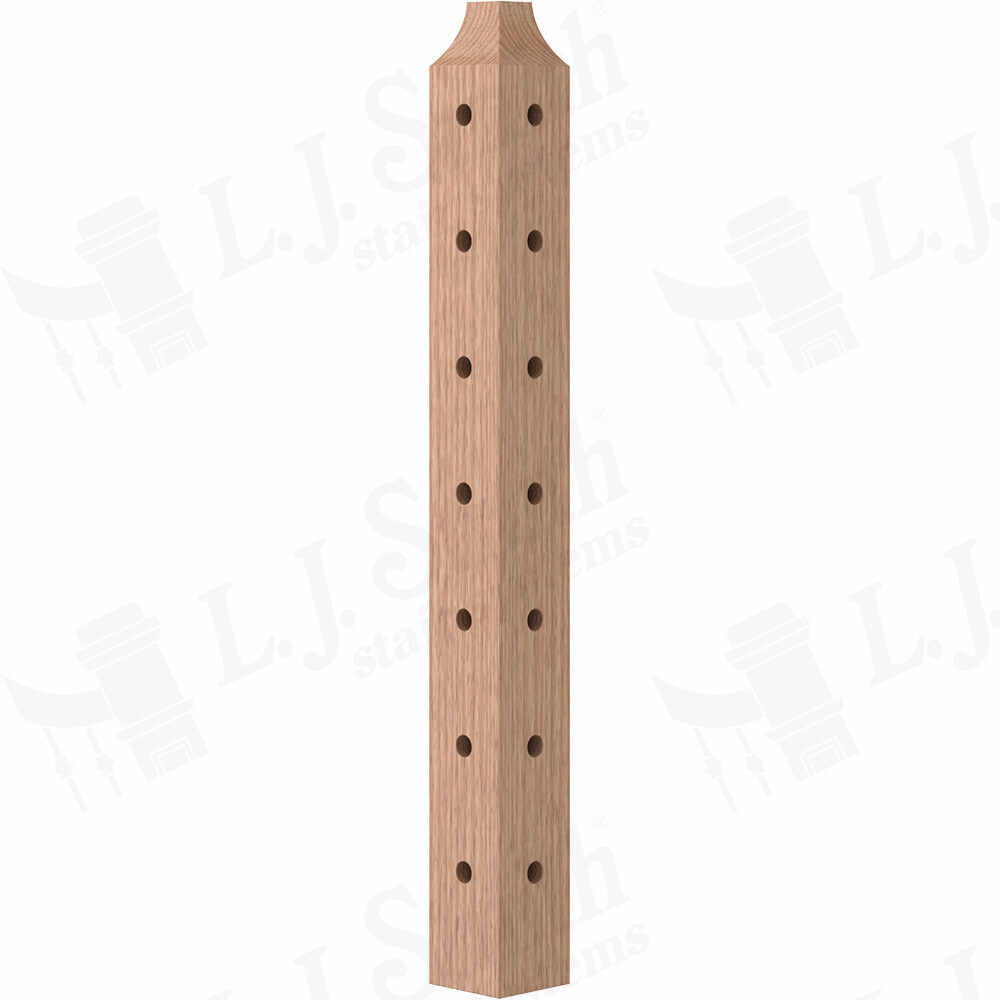

Level Corner Newel (3-1/3" square by 34-3/8", 37-3/8" or 40-3/8") for use at the corner of two level runs on Tube System.
Available in red oak or hard maple.
Each newel post comes with a 3/4" x 2" wood dowel for attaching the 684 wood handrail.
Available for 36", 39" and 42" rail height systems. Please note the newel lengths on the are 34-3/8" on a 36" system, 37-3/8" on a 39" system and 40-3/8" on a 42" system.
Level Down Newel (3-1/3" square by 34-3/8", 37-3/8" or 40-3/8") for use on the second floor landing at top go the stairway flight on Tube System.
Available in red oak or hard maple.
Each newel post comes with a 3/4" x 2" wood dowel for attaching the 684 wood handrail.
Available for 36", 39" and 42" rail height systems. Please note the newel lengths on the are 34-3/8" on a 36" system, 37-3/8" on a 39" system and 40-3/8" on a 42" system.
Level Pass Through Newel (3-1/3" square by 34-3/8", 37-3/8" or 40-3/8") for use on the level runs either midway (or no greater than 42" spans) between Level Start/Stop, Corner or Down Newels on a Tube system.
Available in red oak or hard maple.
Each newel post comes with a 3/4" x 2" wood dowel for attaching the 684 wood handrail.
Available for 36", 39" and 42" rail height systems. Please note the newel lengths on the are 34-3/8" on a 36" system, 37-3/8" on a 39" system and 40-3/8" on a 42" system.
Rake Up Newel (3-1/3" square by 35-3/4" or 38-3/4") for use on the first tread at the bottom of the stairway on a Tube System.
Available in red oak or hard maple.
Each newel post comes with a 3/4" x 2" wood dowel for attaching the 684 wood handrail.
Available for 36" and 39" rail height systems. Please note the newel lengths on the are 35-3/4" on a 36" system and 38-3/4" on a 39" system.
Rake Pass Through Newel (3-1/3" square by 35-3/4" or 38-3/4") for use on the rake portion of the stairs either midway or 42" (or less") intervals between the newels at the bottom and top of each flight on a Tube System.
Available in red oak or hard maple.
Each newel post comes with a 3/4" x 2" wood dowel for attaching the 684 wood handrail.
Available for 36" and 39" rail height systems. Please note the newel lengths on the are 35-3/4" on a 36" system and 38-3/4" on a 39" system.
