Our box treads are face laminated solid construction and perfect for creating a modern and open designed stairway. Box treads are offered in hard maple and red oak as standard, however other species may be quoted.
KEY FEATURES:
Face laminated solid construction
Stain grade
Use with Linear Collection panel, tube and cable systems
3-1/2" tall and 11-1/2" deep. Widths of 42", 48" or custom quoted sizes
Our box treads are face laminated solid construction and perfect for creating a modern and open designed stairway. Box treads are offered in hard maple and red oak as standard, however other species may be quoted.
KEY FEATURES:
Face laminated solid construction
Stain grade
Use with Linear Collection panel, tube and cable systems
3-1/2" tall and 11-1/2" deep. Widths of 42", 48" or custom quoted sizes
Treads are 1" thick and 11-1/2" deep. Standard lengths available are 36", 42", 48", 54", 60", 72". Other lengths can be quoted.
Available in Red Oak, Hard Maple, White Oak and Cherry.
Tread is 1" thick by 11½" deep. Total rise is 8". The top tread is "finished" on both sides allowing this to work as both a left or right false end starting step.
Radius on end of tread is 7-1/4". Diameter is 14-1/2".
Used when a volute or turnout is utilized at the bottom of the stairway and carpeting will be placed on the center of the treads and risers.
For PDF drawing, please see:
http://assets.ljsmith.com/assets/files/cad/Lj83102.pdf

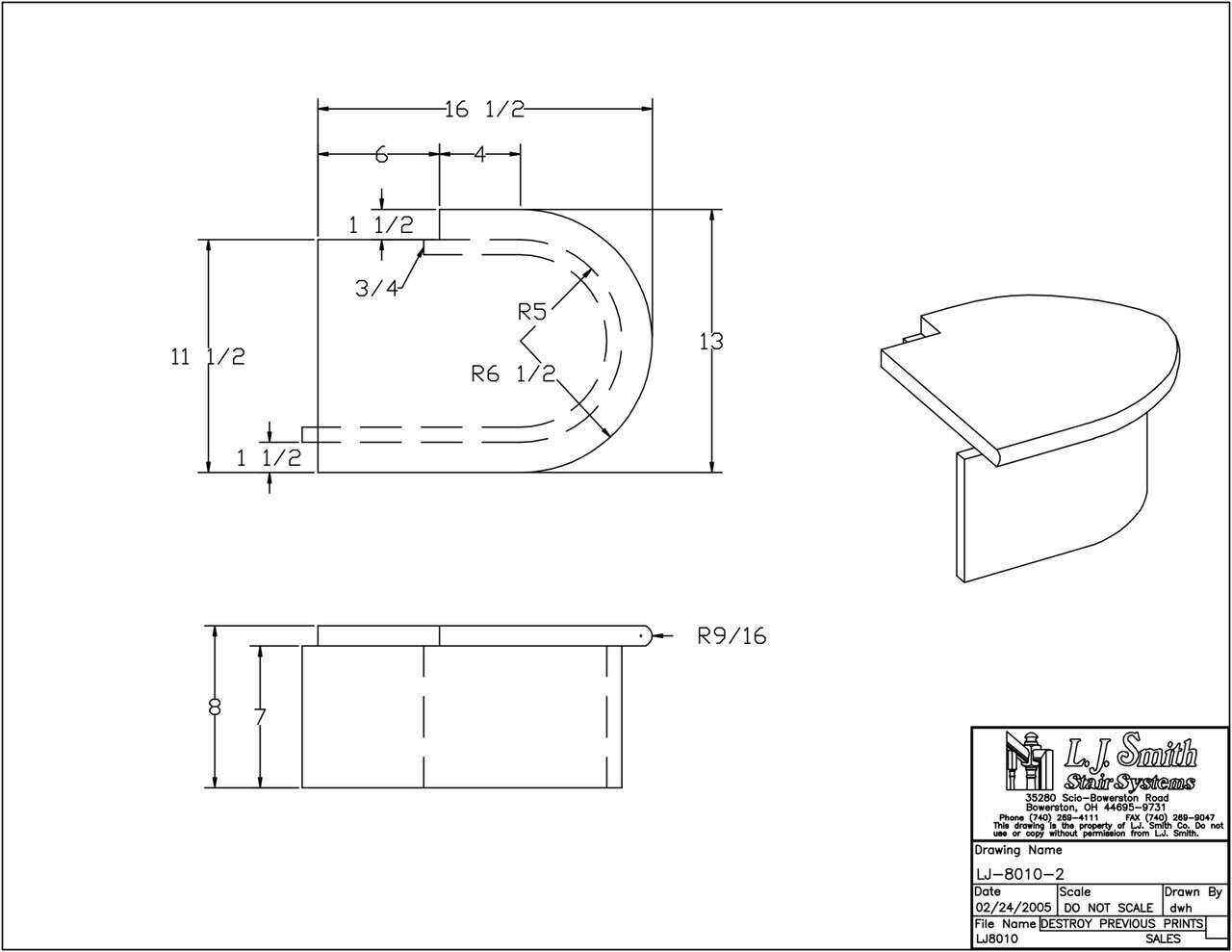

Tread is 1" thick by 11½" deep. Total rise is 8". The top tread is "finished" on both sides so this works for both a left and a right.
Radius on end of tread is 6-1/2". Diameter is 13".
Used when a volute or turnout is utilized at the bottom of the stairway and carpeting will be placed on the center of the treads and risers.
Beautiful, unfinished Red Oak
Stain or varnish to enhance the grain and compliment your decor
Can be finished to match handrail

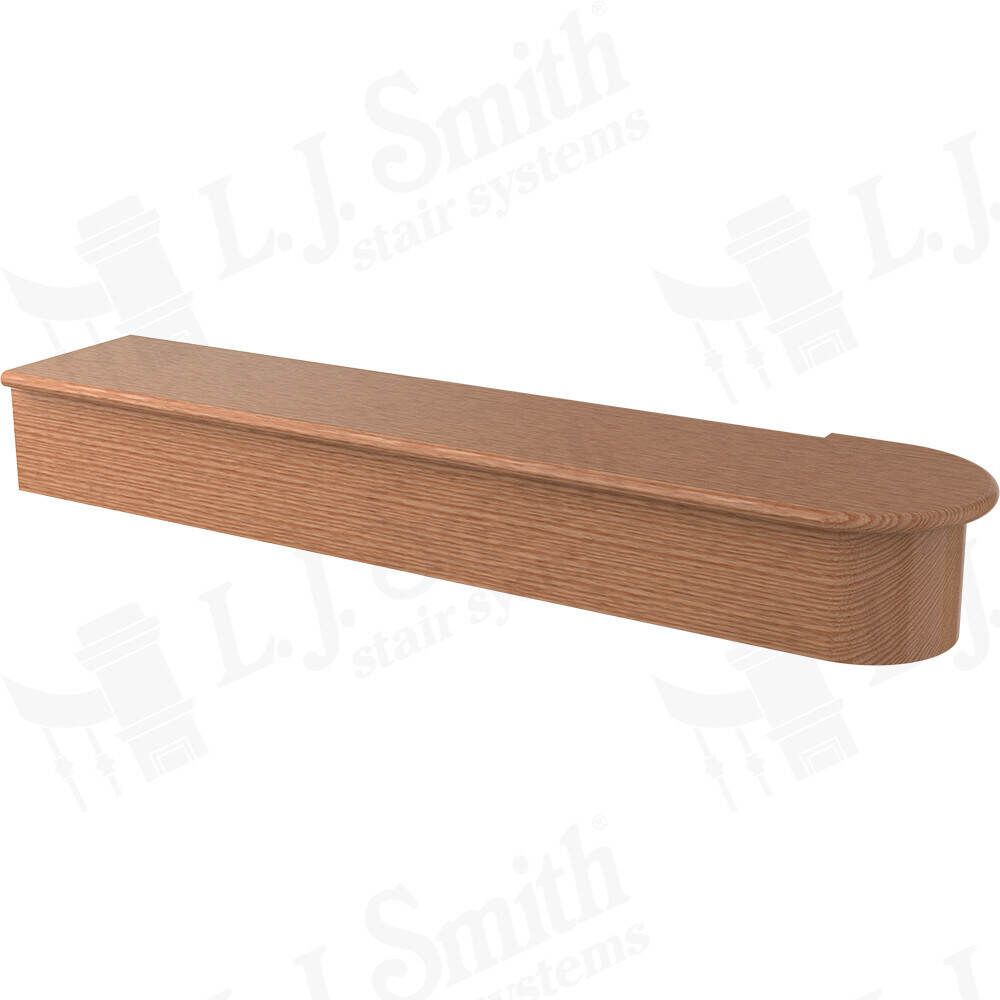

Standard lengths available are 48", 54", 60". Other lengths can be quoted.
Comes with 3/4" cove moulding profiled to fit beneath tread and against riser.
Tread is 1" thick by 13" deep. Riser base is 7". Total rise is 8".
For pdf drawing, please see: http://www.ljsmith.net/assets/files/cad/LJ8010.pdf
Is stock on Red Oak and Hard Maple.
Use on the treads against the wall side of the stairway when carpeting will be installed up the center of the stairway.
For PDF drawing, please see:
http://assets.ljsmith.com/assets/files/cad/LJ8172.pdf
For PDF installation guide, please see:
http://assets.ljsmith.com/assets/files/pdf/8172_8179FalseTreadInst.pdf

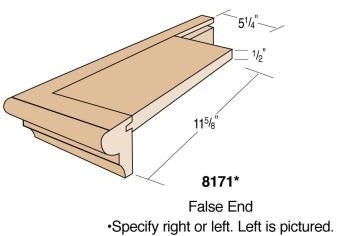

Use on the treads on the open side of the stairway when carpeting will be installed up the center of the stairway. Can be used with the 8172 Wall Return to create a "carpet runner" look.
For PDF drawing, please see:
http://assets.ljsmith.com/assets/files/cad/S8071LH.pdf
or
http://assets.ljsmith.com/assets/files/cad/S8071RH.pdf
For PDF installation guide, please see:
http://assets.ljsmith.com/assets/files/pdf/8172_8179FalseTreadInst.pdf
Standard lengths available are 48", 54", 60". Total length is 10-5/8" wider then the the standard length (please see pdf drawing below). Other lengths can be quoted.
Click here to view pdf drawing
Comes with 3/4" cove moulding profiled to fit beneath tread and against riser.
Tread is 1" thick by 17-3/4" deep. Riser base is 7". Total rise is 8".
Standard lengths available are 48", 54", 60". Total length is 7" wider then the the standard length (please see pdf drawing below). Other lengths can be quoted.
Click here to view pdf drawing
Comes with 3/4" cove moulding profiled to fit beneath tread and against riser.
Tread is 1" thick by 17-3/4" deep. Riser base is 7". Total rise is 8".

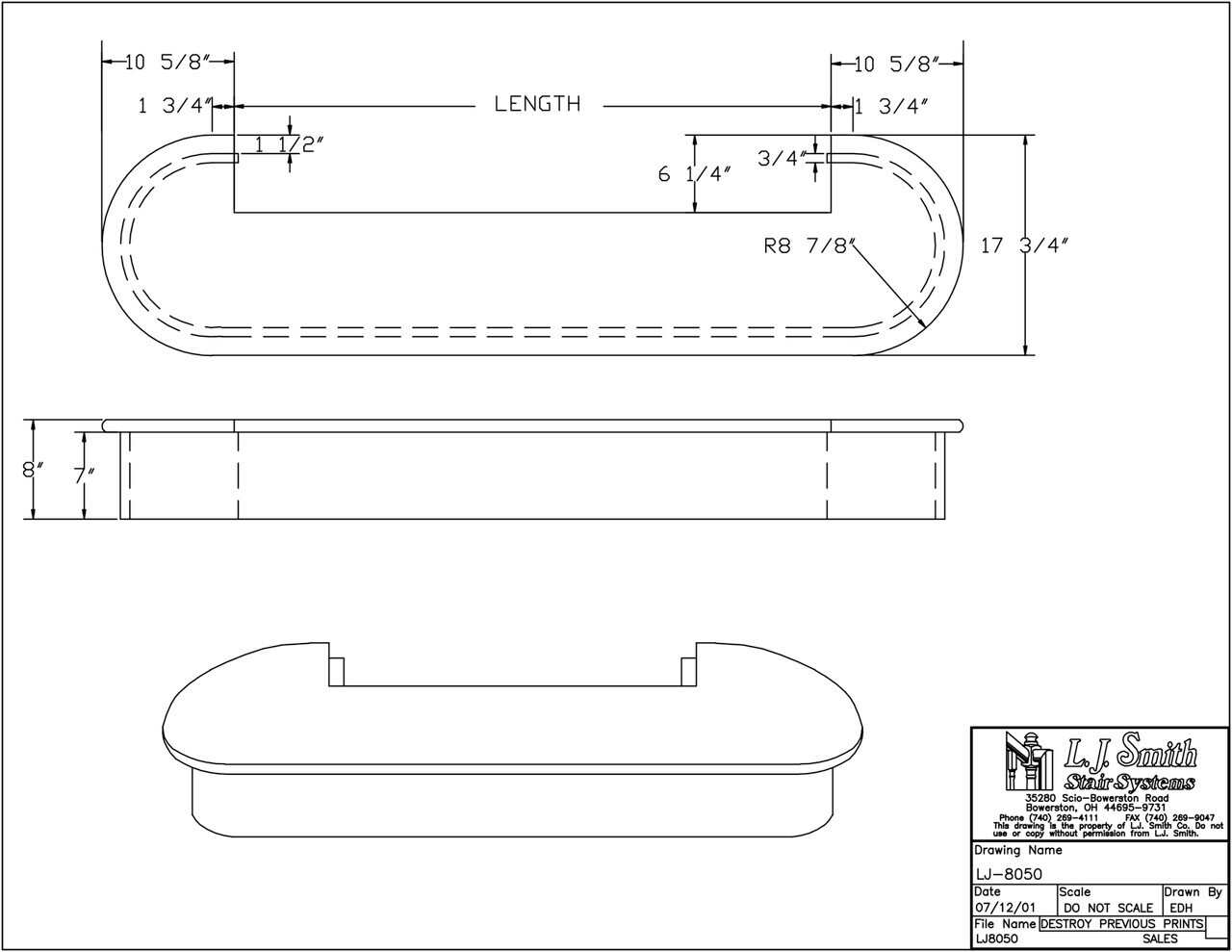

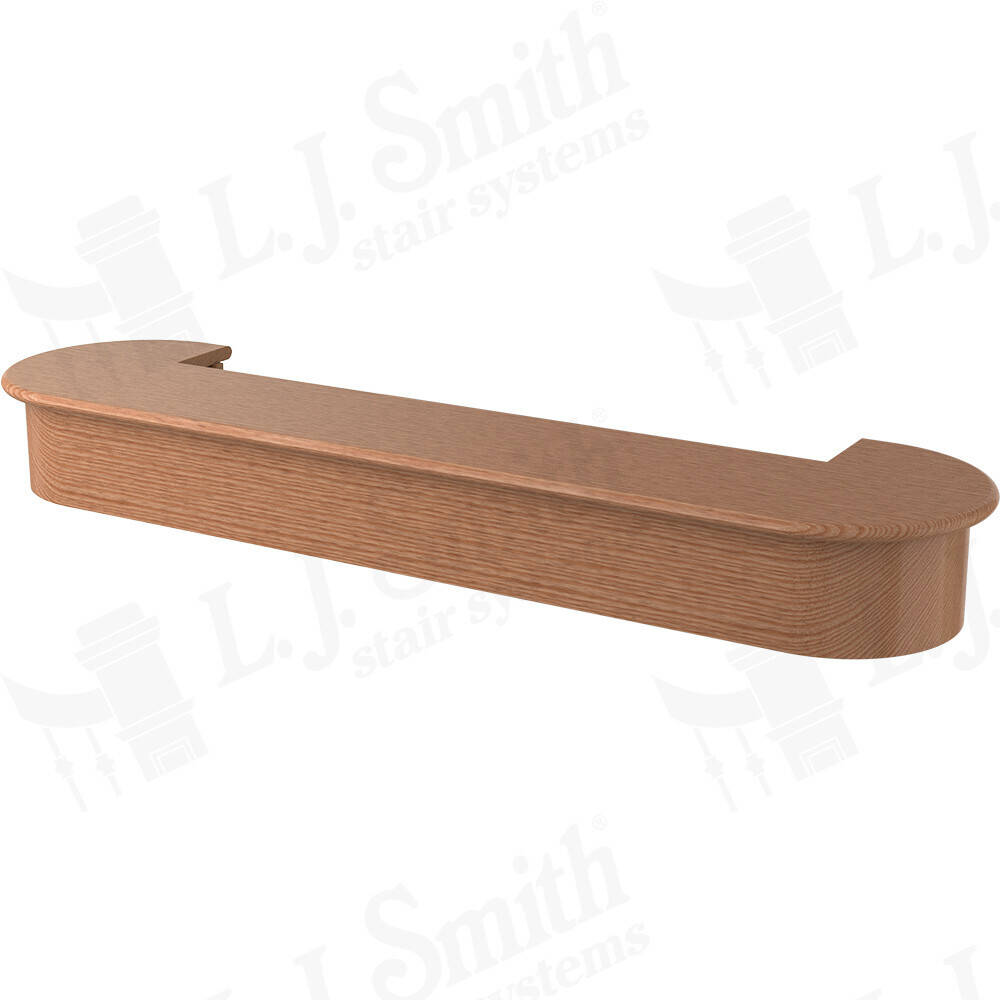

Standard lengths available are 48", 54", 60". Total length is 21-1/4" wider then the the standard length (10-5/8" each side - please see pdf drawing below). Other lengths can be quoted.
Comes with 3/4" cove moulding profiled to fit beneath tread and against riser.
Tread is 1" thick by 13" deep. Riser base is 7". Total rise is 8".
Click here to view pdf drawing
