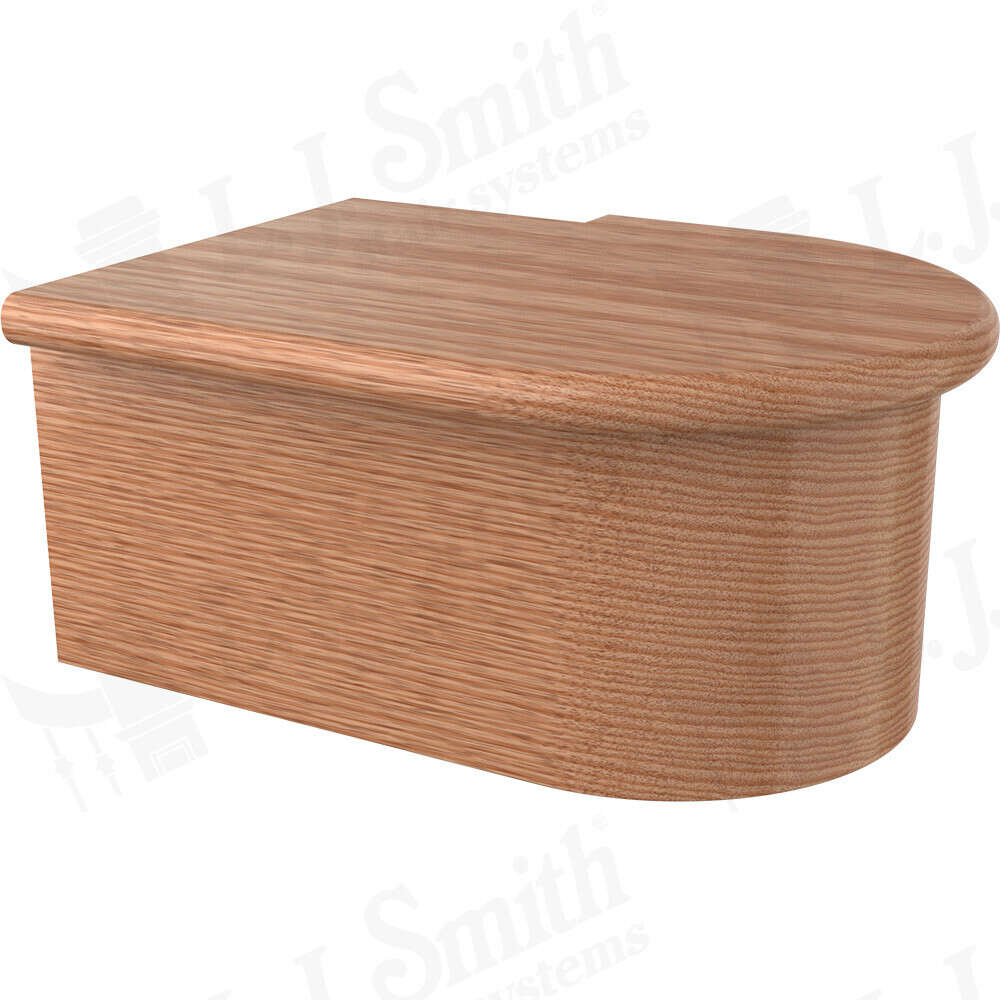

LJ-8010-2 — False End Starting Step with 6-1/2" Radius
Tread is 1" thick by 11½" deep. Total rise is 8". The top tread is "finished" on both sides so this works for both a left and a right.
Radius on end of tread is 6-1/2". Diameter is 13".
Used when a volute or turnout is utilized at the bottom of the stairway and carpeting will be placed on the center of the treads and risers.

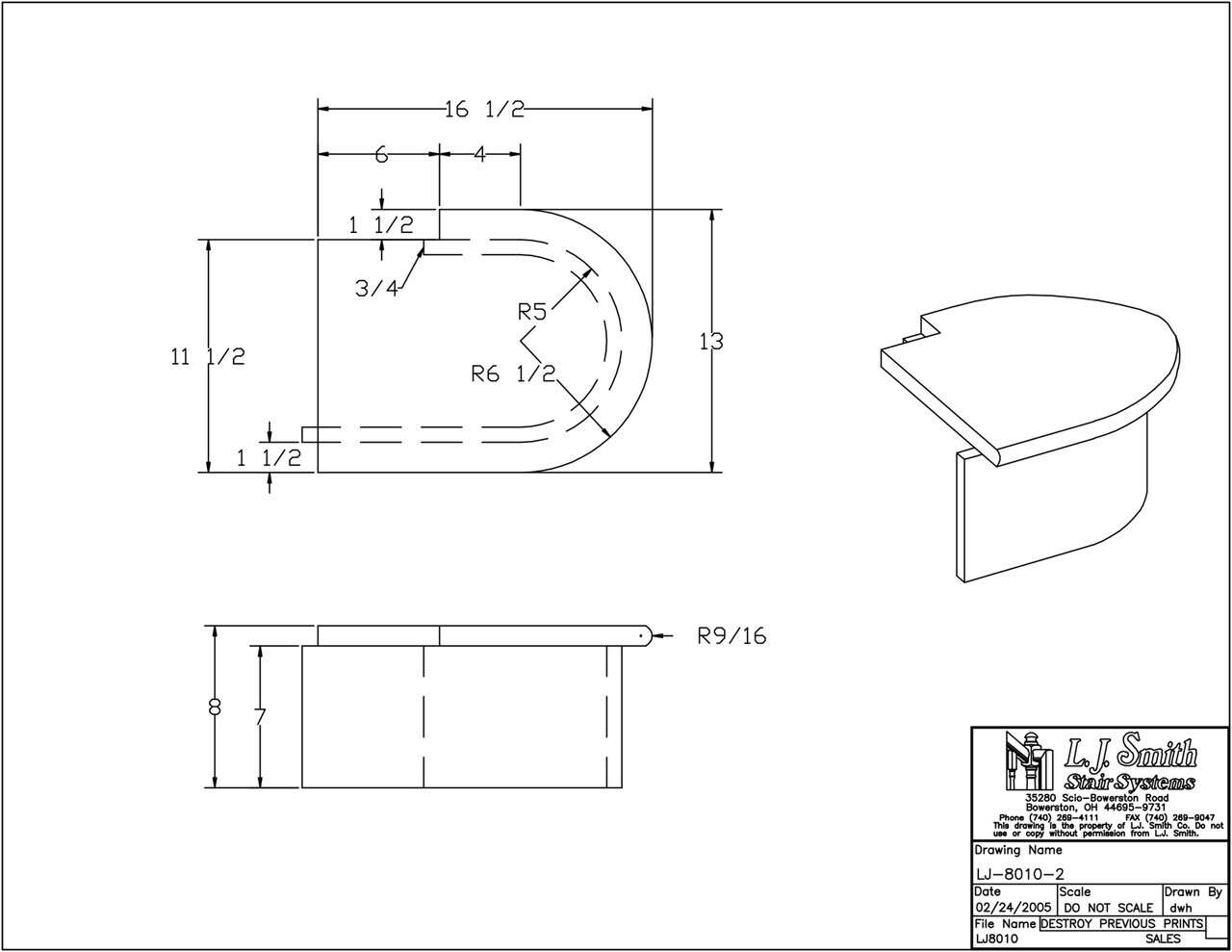

For PDF drawing, please see:
